EFFICIENT PAPER BAND COOLANT FILTER FOR SUPERIOR SURFACE FINISH

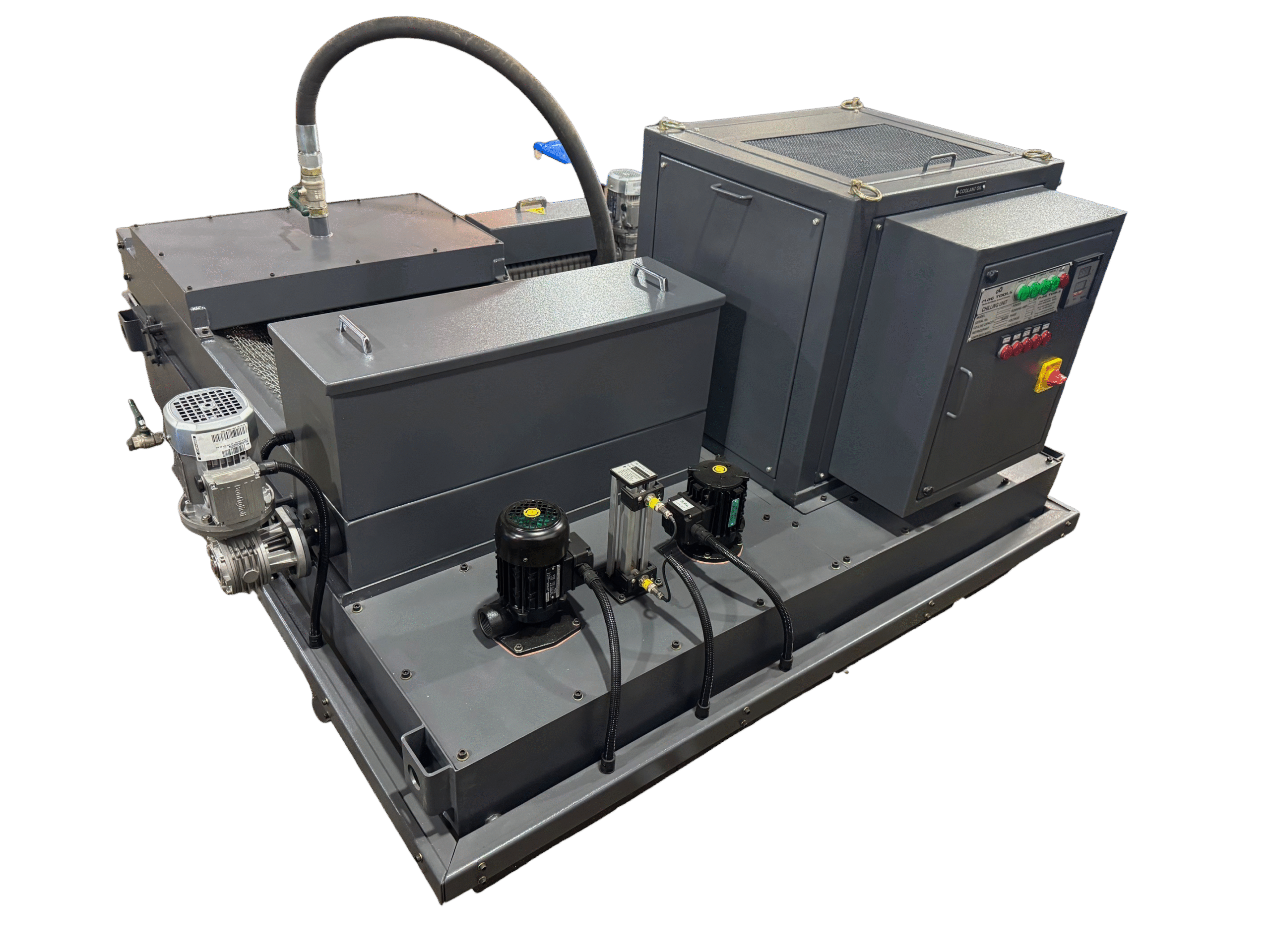

Mag Tools Coolant Filtration unit is fabricated in steel. This entire unit is fixed on a coolant tank with a pump to supply clean coolant back to the grinding machine. The filtering paper is spread over an endless stainless steel mesh conveyor which is connected to a geared motor. this uniquely designed conveyor prevents overflowing of the liquid and the full width of the filter paper is used in filtration of the coolant. The movement of the filter paper is controlled by a float switch which activates the geared motor to move forward.
Mag Tools paper band coolant filter cum magnetic coolant involves our standard ATP (PLAIN DRUM MAGNETIC COOLANT FILTER or TAP Model SLOTTED TYPE MAGNETIC DRUM COOLANT FILTER. The powerful magnetic drum driven by a heavy duty geared motor designed to run continuously.
OPERATION
The contaminated coolant liquid is first passed through the magnetic coolant filter which separates almost 95% of the magnetic ferrous particles. The liquid further passes through filter paper where all the nonferrous particles like grinding grit, stainless dust, brass or aluminum sludges are filtered. As the porosity of paper gets filled up due to accumulates the liquid level rises. This triggers the float switch which starts the geared motor and fresh coolant filter paper from the reel is pulled forward automatically. Now the liquid passes through the fresh coolant filter paper media and float switch shuts down the coolant filtration system.
APPLICATION
Coolant Filtration cum Magnetic coolant filters offer the excellent means of filtering both ferrous and nonferrous particles. Where high degree of purification is required and contaminates differ in from, size and composition. Paper band Filtering system gives best results. These coolant filtration systems are recommended for Grinding machines , Honing machines , Transfer lines and Machining centers. It also can be used for rolling mills for filtering coolant which helps to improve the surface finish to the sheets.
GEARED MOTOR
The drive of the drum is achieved by double reduction worm and worm wheel. The worms are made in high carbon steel, hardened and ground which run on sealed ball bearings. The worm wheels are made in high wear resistance materials. An oil indicator is provided to ensure the level of oil in the gear box. This box is designed for continues and trouble free running for years.
ADVANTAGES
High efficient way of coolant filtration guarantees fine finish, dimensional accuracy, increased tool life and keeps your machine clean & reduces costly machine down time for periodical cleaning.
Avoids bacterial growth and wastage of expensive coolants.
Since the complete paper band filtration system is automatic, No manual attention is needed
Where heavy stock removal increases the temperature of the coolant. this system of paper band filtration system due to sufficient exposure to air helps to control the same.
These coolant filters are a type of filtration system used for removing contaminants and impurities from coolant fluids in various industrial processes. These consist of a paper band that is specifically designed to trap and retain particles, dirt, and debris present in the coolant. As the coolant flows through the filter, the coolant filter effectively captures and holds onto these unwanted substances, ensuring that the coolant remains clean and free from harmful elements. This helps to maintain the overall efficiency and performance of the machinery and equipment that rely on the coolant for their operation. These coolant filte are known for their high filtration efficiency and are commonly used in applications such as metalworking, machining, and other manufacturing processes where coolant quality is crucial.
Mag Tools Paper Band Coolant Filter is designed to effectively remove contaminants and extend the lifespan of your coolant, resulting in cleaner and more efficient operations. Made with high-quality paper material, this filter offers superior filtration capabilities and is capable of capturing even the smallest particles.
Key Features:
– High-quality paper material for superior filtration
– Captures small particles for cleaner coolant
– Extends the lifespan of coolant
– Improves overall efficiency of operations
Benefits:
– Improved tool life
– Reduced machine downtime
– Lower maintenance costs
– Enhanced surface finish on parts
– Increased productivity and profitability
Whether you are in the metalworking industry or any other sector that relies on coolant for machining processes, our Mag Tools Paper Band Coolant Filter is a reliable and cost-effective solution to ensure your operations run smoothly and efficiently. Trust Mag Tools for all your coolant filtration needs.
The Mag Tools paper band coolant filter is a highly effective filtration solution designed to remove contaminants and impurities from coolant systems in industrial machinery. This advanced filter is capable of efficiently capturing particles such as metal shavings, oils, and dirt, ensuring that the coolant remains clean and free of debris.
The paper band coolant filter is specifically engineered to improve the overall performance and longevity of coolant systems, reducing the risk of clogs, corrosion, and other issues that can compromise the efficiency of machinery. By maintaining a clean and well-filtered coolant system, the Mag Tools paper band coolant filter helps to enhance the operational efficiency and productivity of industrial equipment, ultimately leading to cost savings and improved performance.
With its durable construction and reliable filtration capabilities, the Mag Tools paper band coolant filter is a valuable asset for any industrial operation looking to optimize the performance and reliability of its coolant systems. Invest in the Mag Tools paper band coolant filter today and experience the benefits of clean, well-filtered coolant for your machinery.
DIMENSIONAL DETAILS FOR PBF/PBMF
(MODEL PBF- PBMF)
