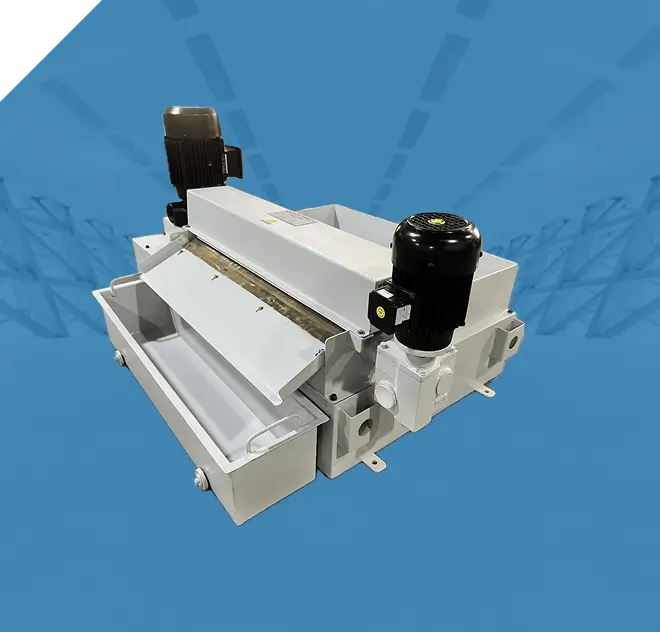

Magnetic Coolant Separator — Working, Benefits, Applications, and Buying Guide

Keep your CNC and grinding coolant clean, extend tool life, and cut operating costs with a magnetic coolant separator. Designed to continuously remove ferrous (iron-based) fines from cutting fluids and oils, it’s a simple upgrade that boosts machining quality and uptime for job shops and high-volume lines alike.

What is a Magnetic Coolant Separator?

A magnetic coolant separator is an inline filtration unit that uses high-strength magnets to capture steel and cast‑iron particles from coolant. Clean coolant returns to the sump; the collected swarf is discharged into a sludge tray or bin for easy recycling.

How It Works

Coolant flows over a powerful magnetic drum or magnetic bars.
Ferrous particles are attracted and held to the magnetic surface.
A wiper or scraper continuously removes the sludge cake.
Clarified coolant flows back to the tank or onward to fine media filters.

Key Benefits

Longer coolant life: Reduces contamination that breaks down emulsions and additives.
Better surface finish: Prevents abrasive fines from re‑circulating through the cutting zone.
Increased tool life: Minimises edge wear and chipping, especially on steels and cast iron.
Less pump/nozzle wear: Avoids clogging and erosion, keeping flow stable.
Higher machine uptime: Fewer sump cleanouts and filter changes.
Lower operating cost: Cuts media consumption and waste disposal; ferrous fines are recyclable.
Safer, cleaner shop: Lower solids in mist and reduced sludge buildup.

Applications

Grinding: Surface, cylindrical, centerless, creep‑feed.
Honing and lapping: Protect stones and maintain tight Ra.
Turning, milling, drilling, broaching: Pre‑filter on individual CNCs.
Gear cutting and shaping: Capture hard steel fines.
Cast iron machining: High-load ferrous fines and graphite.
Central coolant systems: First stage before paper‑bed, bag, or cartridge filters.
Quench and wash tanks: Remove scale and magnetic debris from oils and aqueous cleaners.

Types of Magnetic Coolant Separators

Magnetic drum separators (continuous): Motorised drum with scraper for high flows and heavy loads.
Magnetic bar/rod grids: Compact, no‑power units for individual machine sumps.
Slotted drum designs: Higher open area for throughput and drier sludge.

How to Select the Right Unit

Flow rate: Match peak return flow with 20–30% headroom.
Particle load and size: Grinding fines vs mixed chips determine drum size and speed.
Coolant type: Emulsions, synthetics, or straight oils affect dwell time and slot/open area.
Ferrous vs non‑ferrous mix: Pair with cyclonic or media filtration for aluminium/brass.
Footprint and layout: Sump space, inlet/outlet heights, service access.
Maintenance: Wiper design, wear parts, ease of sludge handling.
Integration: Upstream of fine filters; compatible with skimmers, chillers, and level controls.

Installation Best Practices

Position the magnet stage before fine media filters to offload particulate load.
Use a distribution weir for even feed across the drum or grid.
Tune drum speed to maximise dwell without overflow.
Set wiper pressure to peel sludge without excessive wear.
Provide a drain‑back sludge bin to recover coolant.

Performance Tips

For very fine haze (<10 µm), add a polishing filter (5–20 µm) downstream.
In mixed‑metal shops, use a side‑stream hydrocyclone or media filter for non‑ferrous fines.
Monitor differential level across the separator; rising delta signals overload or wiper wear.
Plan periodic inspection and quick-clean procedures during scheduled maintenance.

Why Choose Us?

Application engineering support: We size systems for your flow, coolant, and process.
Rugged build: High‑energy rare‑earth magnets, corrosion‑resistant housings, and industry‑tested scrapers.
Fast ROI: Typical payback via reduced tool wear, fewer filter changes, and longer coolant life.
Pan‑India delivery and service: Commissioning, spares, and AMC options.

FAQs

Will it work with aluminium? Magnets capture ferrous particles.
Ans : Add a cyclonic or media filter for non‑ferrous metals.
How fine can it filter?
Ans : Drum units effectively capture sub‑10 µm ferrous fines with proper dwell and loading.
Can I retrofit on a single CNC?
Ans : Yes—compact magnetic bars or mini‑drums fit most machine sumps.

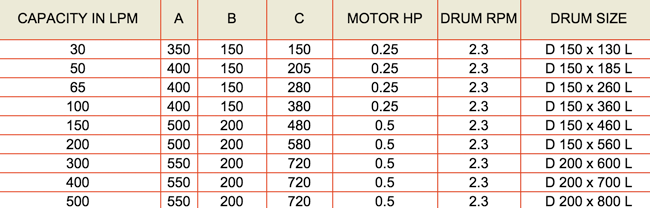

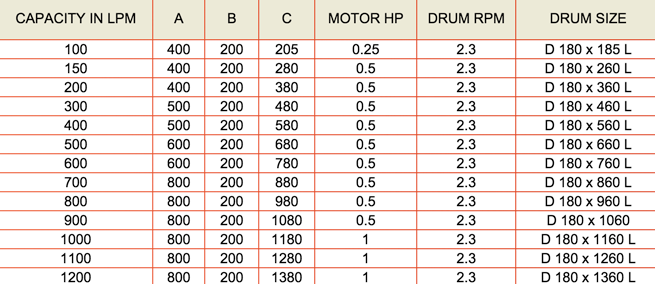

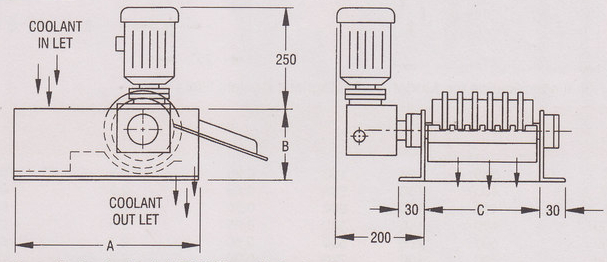

DIMENSIONAL DETAILS FOR MAGNETIC COOLANT FILTER/ MAGNETIC SEPARATOR ( MODEL T.A.P )
