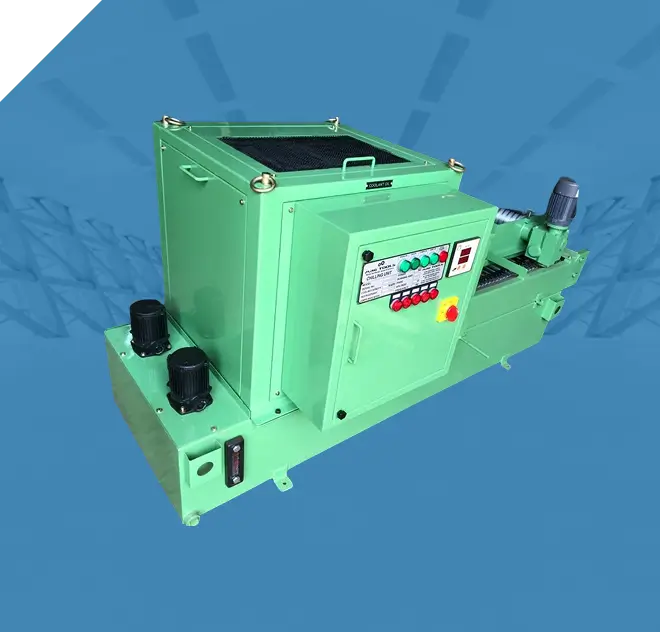

Precision Coolant Filtration Systems with Chiller Integration

In modern CNC machining, managing metalworking fluids requires more than just removing chips and swarf. As spindle speeds increase and cycle times decrease, the heat generated during the cutting process becomes a major variable in part quality. A coolant filtration system with a chiller provides a comprehensive solution, delivering fluid that is not only ultra-clean but perfectly temperature-controlled.

By integrating particulate filtration with active thermal management, progressive machine shops can eliminate unpredictable thermal expansion, extend tool life, and maintain strict tolerances shift after shift.

Why Add a Chiller to Your Coolant Filtration?

Filtration alone removes the abrasive particles that wear down tools and pumps out the tramp oils that degrade fluid health. However, as coolant courses through high-pressure pumps and absorbs heat from aggressive cutting zones, the temperature in the sump steadily climbs.

This rising heat causes several hidden problems:

Thermal Drift: As the machine casting, spindle, and workpiece absorb heat, they expand physically. Even minor temperature fluctuations can push precision parts out of tolerance.
Fluid Degradation: Warm coolant is the perfect breeding ground for bacteria and fungus, leading to shortened fluid life and foul odors.
Viscosity Loss: Straight cutting oils lose their thickness as they heat up, stripping away their ability to lubricate the cutting edge effectively.

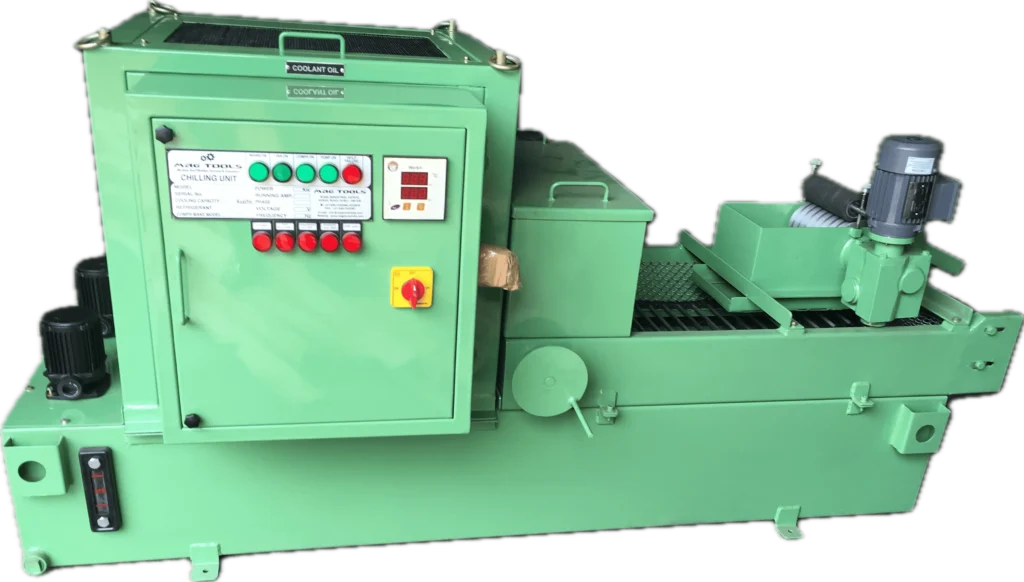

A coolant filtration system with a chiller intercepts this heat loop, locking the fluid temperature at an optimal baseline while simultaneously filtering out the grit.

Core Benefits of a Combined Filtration and Chiller Unit

Investing in an all-in-one chilling and filtration skid delivers immediate, measurable improvements to your manufacturing process:

Locked-In Tolerances: A dedicated chiller maintains the coolant temperature within a tight window (often ±1°C). Delivering predictably cool fluid to the cutting zone stabilizes the thermal dynamics of the entire machine, allowing you to hit microscopic tolerances from the first part of the morning to the last part of the day.
Maximized Tool and Wheel Life: Heat and friction are the primary causes of premature tooling failure. Clean, chilled coolant provides superior cooling power to the cutting edge, preventing thermal cracking on carbide inserts and significantly extending the life of grinding wheels.
Extended Coolant Lifespan: Bacteria cannot thrive in cold, constantly circulating, filtered fluid. This dramatically reduces the need to dump and replace expensive coolant, lowering both purchase and disposal costs.

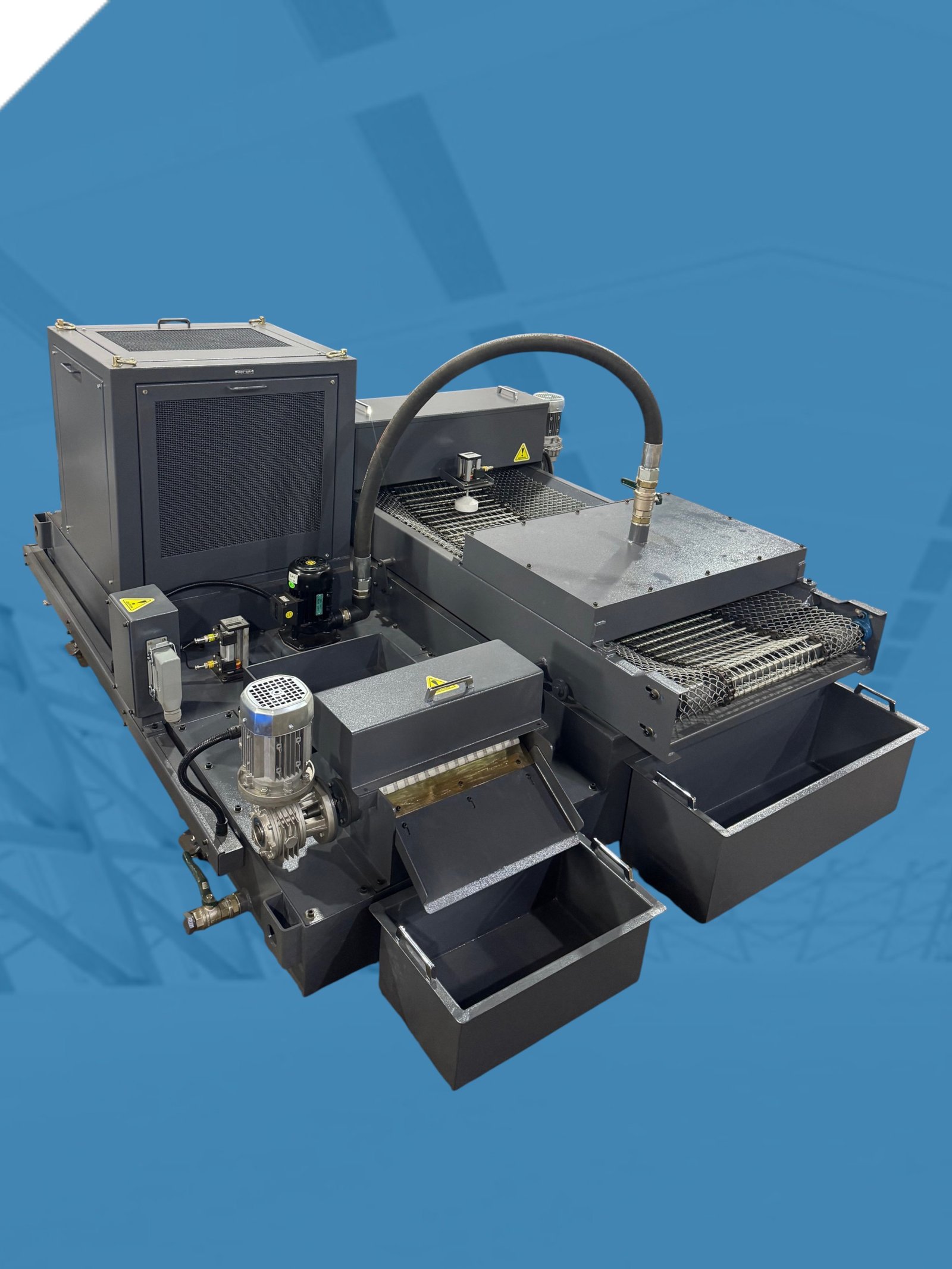

Space and Plumbing Efficiency: Purchasing a single system that contains a magnetic separator or gravity bed alongside an integrated chiller saves valuable floor space. It also simplifies installation, requiring fewer pumps, hoses, and electrical drops than running two standalone units.

These systems streamline fluid management by executing two critical processes in a rapid, continuous loop:

Primary Separation: Dirty, heated coolant flows out of the machine and passes through the filtration stage—typically using disposable filter paper media, magnetic drums, or cyclonic separation—to strip out the metal fines and chips.
Thermal Regulation: The cleaned fluid drops into the clean tank, where it is immediately processed by the integrated chiller. A heat exchanger or drop-in evaporator coil actively pulls the accumulated heat out of the fluid.
Precision Delivery: High-pressure pumps drive the pristine, temperature-regulated fluid back to the spindle and cutting zone, ready to absorb heat and flush away chips all over again.

Essential Applications

While every machining process benefits from clean, cool fluid, a coolant filtration system with a chiller is absolutely essential for:

Precision Grinding: Where surface finish is paramount and part temperatures must be strictly controlled to prevent metallurgical damage.
High-Pressure Coolant Delivery: Systems running at 1,000 PSI or higher generate massive amounts of mechanical heat that must be counteracted.
Swiss Turning: Straight oils require exact temperature management to maintain viscosity and flow characteristics during high-speed micro-machining.
Exotic Alloy Machining: Metals like titanium and Inconel generate extreme localized heat at the tool edge, demanding highly efficient, chilled coolant to prevent catastrophic tool failure.

Combining advanced filtration with precise temperature control removes the guesswork from fluid management, allowing your CNC equipment to perform at its maximum potential with zero compromise on quality.
